Application area:

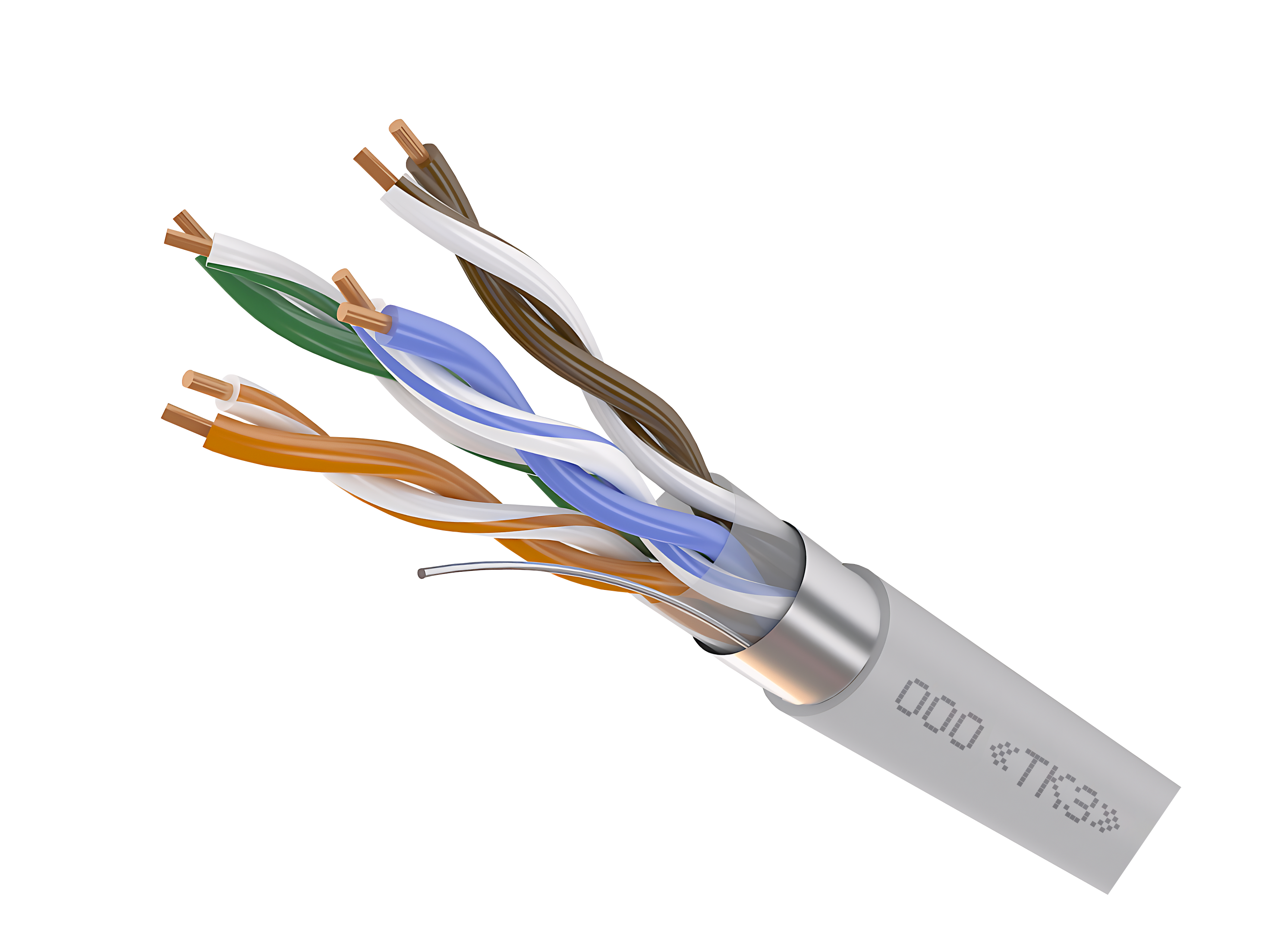

High-frequency twisted pair cables for structured cabling systems are intended for stationary horizontal and vertical installation inside buildings and structures. They are designed to operate in the frequency range up to 100 MHz (Category 5 and 5e according to GOST R 54429-2011) and ISO/IEC 11801. The cables are manufactured in climatic version U, placement categories 3 and 4 for cables with a polyvinyl chloride sheath according to GOST 15150.
Technical specification:
|
Name |
Number of pairs and conductor diameter, mm |
Conductor diameter |
Nominal outer cable diameter with conductor 0.50 mm, mm |
Cable weight with conductor 0.50 mm, kg/km |
Manufacturing length, km |
|
KSVPV-5e, U/UTP Cat 5e PVC |
1x2 |
0.46±0.01 0.48±0.01 0.50±0.01 0.51±0.01 0.52±0.01 |
3.1 |
9.05 |
0.305; 0.5;1 |
|
2x2 |
5.2 |
18.53 |
0.305; 0.5 |
||
|
4x2 |
5.98 |
29.44 |
0.305 |
||
|
8x2 |
8.08 |
51.41 |
0.305 |
||
|
10x2 |
9.2 |
62.39 |
0.305 |
||
|
16x2 |
11.16 |
105.06 |
0.305 |
||
|
25x2 |
15.12 |
158.93 |
0.305 |
||
|
50x2 |
19.76 |
290.79 |
0.305 |
||
|
100x2 |
25.3 |
571.25 |
0.305 |
Electrical characteristics:
- Conductor resistance recalculated per 100 m of cable length at 20 °C, not more than 9.6 Ohm;
- Ohmic imbalance of conductors in a working pair over 100 m, not more than 2%.
- Attenuation coefficient recalculated per 100 m length at 20 °C, dB, not more than
|
Frequency, MHz |
1 |
4 |
10 |
16 |
20 |
31.25 |
62.5 |
100 |
|
Attenuation, dB |
2.1 |
4.1 |
6.5 |
8.3 |
9.3 |
11.7 |
17.0 |
22.0 |
- Near-end crosstalk attenuation for any pair combination NEXT recalculated per 100 m length, dB, not less than
|
Frequency, MHz |
1 |
4 |
10 |
16 |
20 |
31.25 |
62.5 |
100 |
|
Attenuation, dB |
65.3 |
56.3 |
50.3 |
47.3 |
45.8 |
42.9 |
38.4 |
35.3 |
- Far-end crosstalk protection for any pair combination EL FEXT recalculated per 100 m length, dB, not less than
|
Frequency, MHz |
1 |
4 |
10 |
16 |
20 |
31.25 |
62.5 |
100 |
|
Attenuation, dB |
64.0 |
52.0 |
44.0 |
39.9 |
38.0 |
34.1 |
28.0 |
24.0 |
- Characteristic impedance Zc, Ohm, 100±15
Operating and installation conditions:
Cables may be operated at ambient temperatures from −40 °C to +60 °C. Cable installation is allowed at temperatures not lower than −10 °C.
The minimum permissible bending radius during installation and operation must be at least 8 maximum outer cable diameters.
Reliability requirements:
The minimum service life of the cables, provided that installation rules, operating conditions, storage and transportation requirements are followed, shall be at least 25 years. The service life is calculated from the date of cable manufacture.
